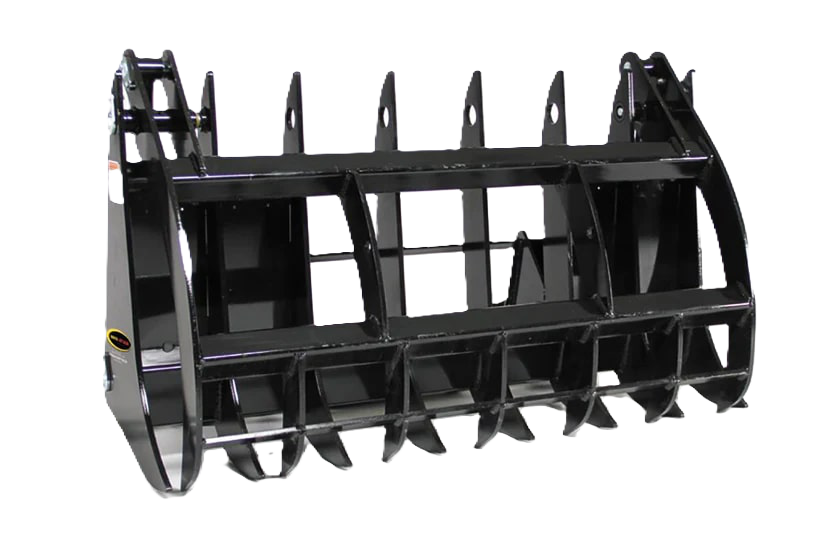

Skid Steer Grapple Rake/Root Grapple | The Quick Claw filler

Price $6,695 + Shipping Fees May Apply

Description

The most versatile tool in your attachment arsenal. The strength of the Grapple Rake allows you to pick up a variety of debris, from logs and brush to rocks and concrete. Quality grade 100 steel used throughout gives you a grapple rake that withstands the toughest demands. The 48” opening and powerful jaws will close, clamp, and hold virtually anything.

  • Grade 100 steel teeth nearly three times stronger than grade 36 (80 plate)

  • 2 - 3,000 lb. hydraulic cylinders

  • Opens to 48”

  • Curved teeth allow the grapple to glide over the ground, raking and cleaning the surface without damaging it

  • Clear brush, pick rocks and mulch

  • Raking and piling, storm cleanup, demolition

  • Use as a root rake

  • Grapple encloses entirely and secures debris

  • Tubular steel construction provides extra strength and power

 Make Sure to Compare Grades of Steel

Some advertise "80 plate", This is a fancy name for Grade 36 Steel. They are marketing the maximum breaking strength of Grade 36 Steel which is 80,000 PSI/KSI. At Quick Attach we advertise our steel at the minimum bending strength, not maximum breaking strength. Don't be confused by grapples stating high tensile strength steel, if the grade isn't stated it is generally a mild Grade 36.

Specifications

  • Model - 84”

  • Part Number - 900318

  • Operating Weight - 900 lb.

  • Overall Width - 85.25”

  • Overall Depth - 33.6"

  • Width Between Teeth (average) - 7.5”

  • Height with Teeth Closed - 37.6”

  • Maximum Height with Teeth Open - 46.3”

  • Maximum Opening - 48”

  • Grapple Teeth (upper) - 11G

  • rapple Teeth (lower) - 12

  • Cylinder Force - Over 12 Tons

  • Hydraulic Cylinders - 3" x 8" (2)

  • Tooth Construction - 1/2” Grade 100
