FAE UML/EX Mulcher

Description

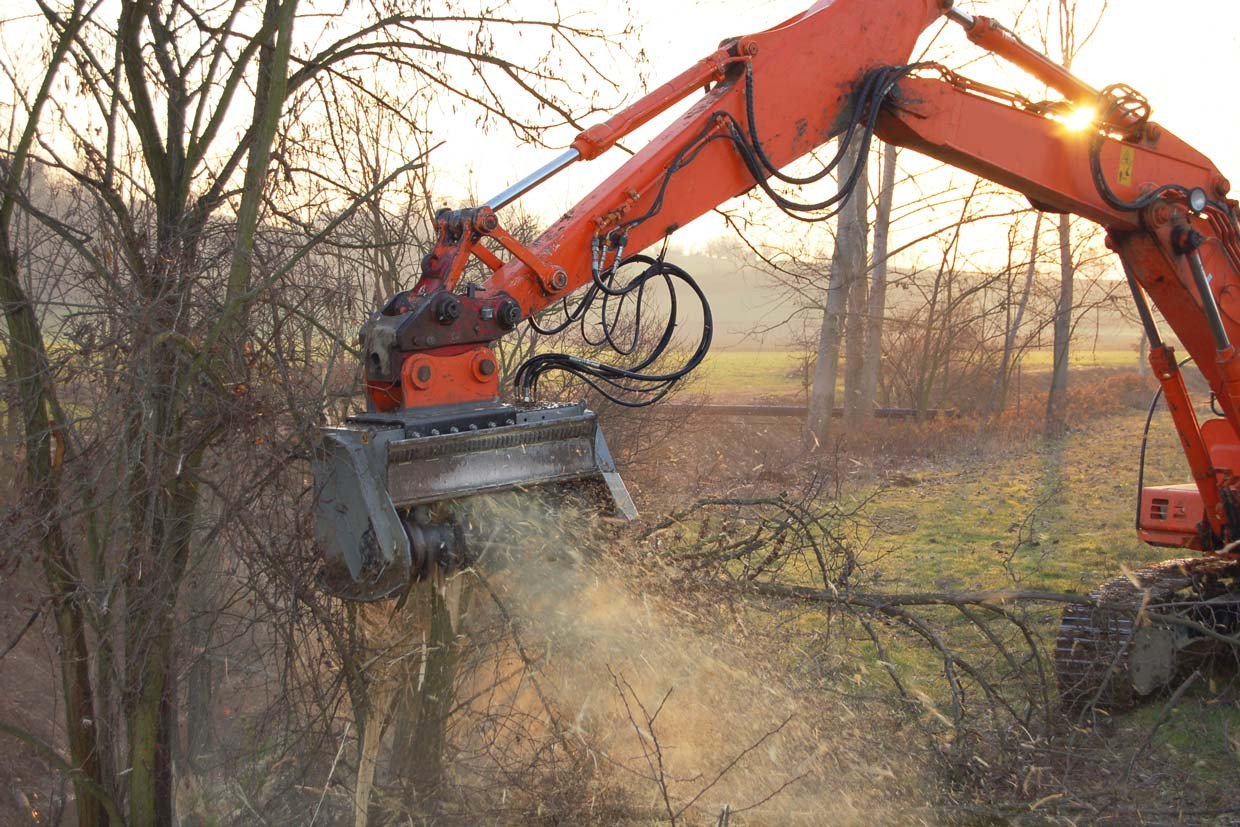

Forestry mulcher with fixed tooth rotor for excavators up to 20 tons.

Thanks to its size, heavy-duty construction, reliability, and performance, the UML/EX is one of FAE’s most popular attachments. The enclosed hydraulic door opening and closing system creates a completely enclosed frame that protects the internal components from dust and debris.

Features:

Hydraulically controlled hood

Revolutionary system for door opening/closing that prevents dirt from entering the service areas of the machine

Steel counter-blades

Helps mulch material into a smaller final size

Flow control valve

To protect the motor from excessive flow

Customized attachment bracket with fixed thumb (optional)

Sonic System

A new automatic intelligent system that manages the hydraulic transmission. It makes the mulching machine perform at the maximum capacity in all conditions (UML/HY/SONIC)

VT motor

Adjustable motor to obtain the maximum performance out of any excavator

Main Options:

Diverter valve

To control the opening and closing of the hydraulic door

Customized attachment bracket with fixed thumb

Bite Limiter rotor

Special steel limiter rings control the depth of blade action (UML/HY/VT)

Specifications

Models- UML/EX 100 / 125 / 150

VT and Sonic

Flow Rate (gal/min)- 34-55

Pressure (PSI)- 3200-5080

Excavator Weight (t)- 14-20

Working Width (in)- 43 / 53 / 62

Weight (lbs)- 2403 / 2579 / 2822

Rotor Diameter (in)- 16.7

Max Shredding Diameter (in)- 8

# of Blades- 20+2 / 26+2 / 32+2

Teeth Options- Tooth C/3 (standard) Tooth C/3/HD (option) Blade BL (option) Tooth K/3 (option)
